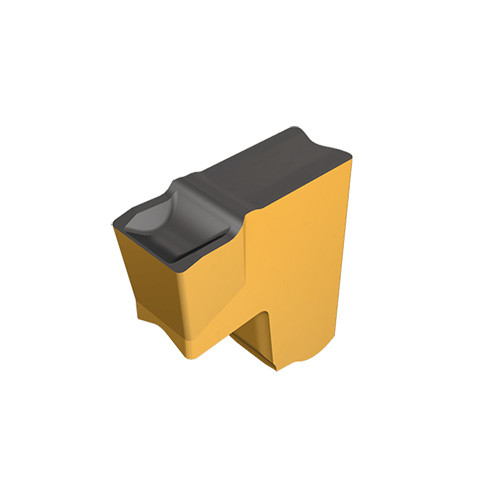

TAG N3MF IC808
Basic design of the "C" chipformer with higher deflector and smaller T-land, most suitable in grade IC5400 for general stainless steel applications for medium to high feeds. Suitable also for high alloy steel.
Produktspezifikationen

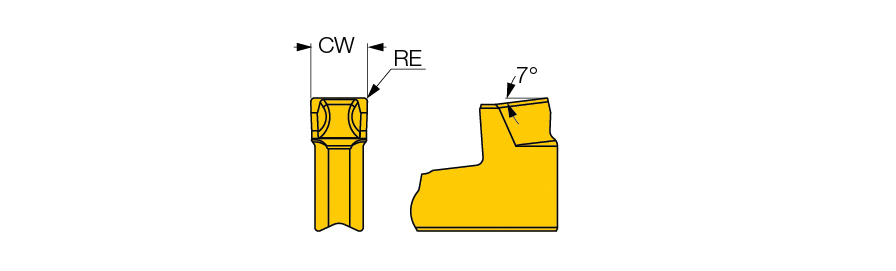

| Schneidbreite (CW) | 3.05 mm | Max. Grooving Feed (fg(max)) | 0.18 mm/rev |
| Eckenradius (RE) | 0.2 mm | Min. Vorschub Einstechen (fg(min)) | 0.06 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.03 mm | Spanformer | MF |
| Schneidstoff | Carbide | Produktart | Groove-Turn Utility Inserts |
| Beschichtung | TiAlN+AlTiN+TiN | Maßsystem | Metric |
| Qualität | IC808 | Schaftausführung | Carbide |
| Richtung (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.05 mm |
| Anwendung | | Abstechen | Einstechen | Schlitzen | Seitlich Nutenfräsen | T Nutenfräsen | | Metrisch/Inch | M |
| geeignet für Werkstoff(e): | | Stahl | Rostfreier Stahl | Guss | Harte Werkstoffe | Hochlegierte Werkstoffe | |
Produkteigenschaften
| Produktbeschreibung | Basic design of the "C" chipformer with higher deflector and smaller T-land, most suitable in grade IC5400 for general stainless steel applications for medium to high feeds. Suitable also for high alloy steel. | Gruppenbezeichnung | TAG N-MF |
| COO | Israel | Hersteller | Iscar |
Versandinfos
Verpackungsgewicht
0.0027
Name
Parting Off Indexable Inserts
Gruppenbezeichnung
TAG N-MF
Hersteller
Iscar
