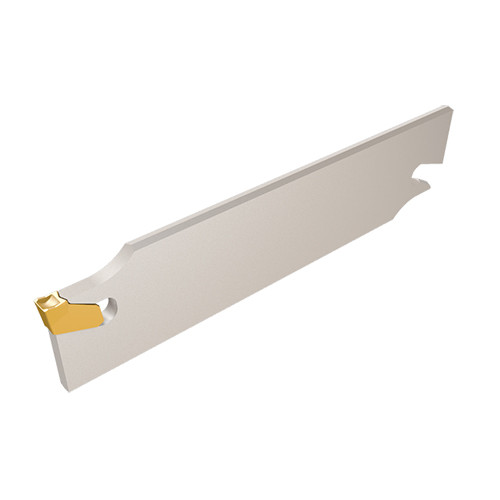

SGFH 26-1.2
SELF-GRIP blades for parting and grooving with single-ended inserts. Blades with coolant holes are designated with "K".
Produktspezifikationen

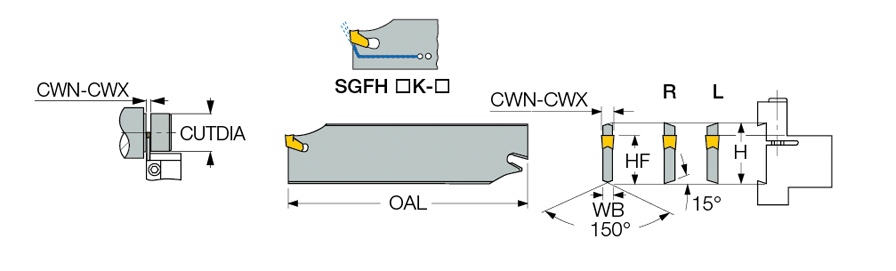

| Schafthöhe (H) | 26 mm | Produktart | Blades and adapters for Parting & Grooving |
| Körperbreite (WB) | 0.9 mm | Schneiddurchmesser (CUTDIA) | 20 mm |
| Schneidbreite min. (CWN) | 1.2 mm | Richtung (HAND) | Neutral |
| Schneidbreite max. (CWX) | 1.2 mm | Maßsystem | Metric |
| Gesamtlänge (OAL) | 110 mm | Body Width_2 (WB_2) | 1.6 mm |
| Anwendung | | Abstechen | Einstechen | | Tool Assembly Length (LTA) | 23.41 mm |
| Number of Pocket (NOP) | 2 | Metrisch/Inch | M |
| Schaftausführung | Steel |
Produkteigenschaften
| Produktbeschreibung | SELF-GRIP blades for parting and grooving with single-ended inserts. Blades with coolant holes are designated with "K". | Gruppenbezeichnung | SGFH/R/L |
| COO | Israel | Hersteller | Iscar |
Versandinfos
Verpackungsgewicht
0.0440
Name
Parting Off Indexable Holders
Gruppenbezeichnung
SGFH/R/L
Hersteller
Iscar
